Product Description
|
Product Info: |
|
|
Item Title |

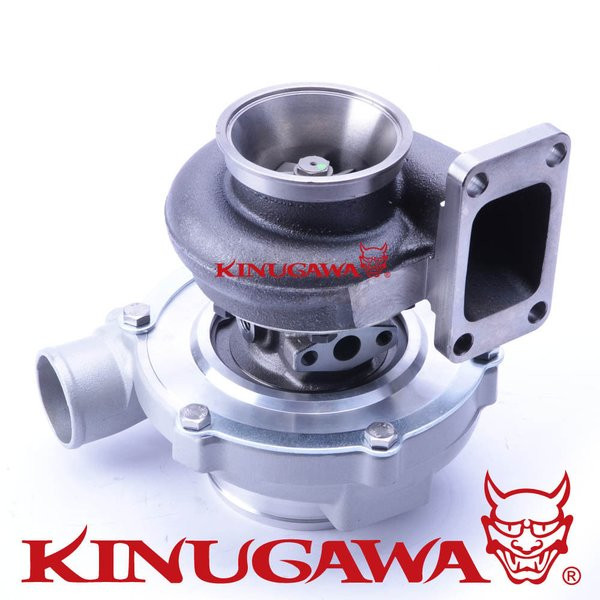

Kinugawa GTX Ball Bearing Turbocharger 4” Anti Surge A/R .60 GTX3071R with A/R .63 T3 V-Band Turbine Housing |
|
Item No. |
|
|
Application |
- 1.8L~3.0L - 340~560 HP |
|
Compressor Wheel |
- 54.1 mm / 71.4 mm / Trim 58 - (11+0 GTX Billet Wheel with Extend Tip) |
|
Turbine Wheel |
- 55 mm / 60 mm / Trim 84 |
|
Compressor Hsg |

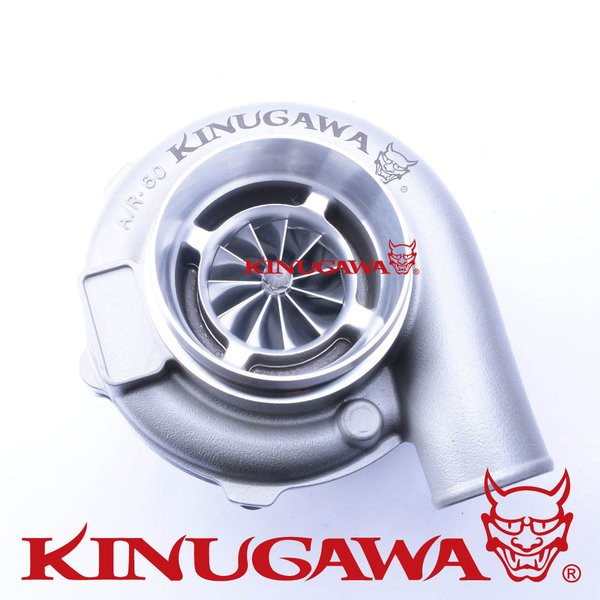

- Compressor Housing Inlet OD : 4” / 100 mm - Compressor Housing Outlet OD : 2” / 51 mm - Compressor Housing A/R : .60 w/ Anti Surge |
|
Turbine Hsg |
- Turbine Inlet Flange : T3 - Turbine Outlet : V-Band - Turbine Housing A/R : .63 - External Gated |
|
Turbo Situation |
Brand New in box |
|
Bearing System |
- Ceramic Dual Ball Bearing - Oil & Water cooled |
|
Wastegate Actuator |
- No Actuator |
|
Included |
- 1 x 70cm Oil Feed Line Kit with 1mm Restrictor for turbo Oil Feed Side - 2 x 30cm Water Feed / Return Line Kit - 1 x Turbo Oil Return Pipe Kit - 1 x Turbine Inlet Gasket - 1 x Turbine Outlet Gasket - 1 x Turbine Outlet Adapter Everything shown on picture is included |
|
Source |
Kinugawa Turbo |
